RGB P4 Seamless Light Weight Indoor LED Cabinet With G Energy Power Supply

  • 1
  • 2

Brand Name : SCX

Model Number : P4

Certification : CE,FCC,ROHS,ISO

Place of Origin : China

MOQ : negotiate

Price : negotiate

Payment Terms : T/T, Western Union

Delivery Time : 5-10days

Packaging Details : wooden boxes

Tube chip color : Epistar

Pixels : 4mm

Module size : 256x128mm

Display function : videos,texts,images

Warranty : 3-year

Brightness : 1000nits

Contact Now

RGB P4 Seamless Light Weight Indoor LED Cabinet With G Energy Power Supply

RGB P4 Indoor LED Display 768*768mm cabinet

♦ Product specification

indoor SMD P4
Lamp size 2121
Resolution/mm 4
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 62500/m²
Module resolution 64x32
Module size/mm 256x128mm
View distance ≥0.5m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >2500cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/32
Frame rate 60Hz
Refresh frequency >4200Hz
Control mode Computer synchronous
Brightness adjusted range Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1000W
Average power:/㎡ <280W
Self-check technology LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoring Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

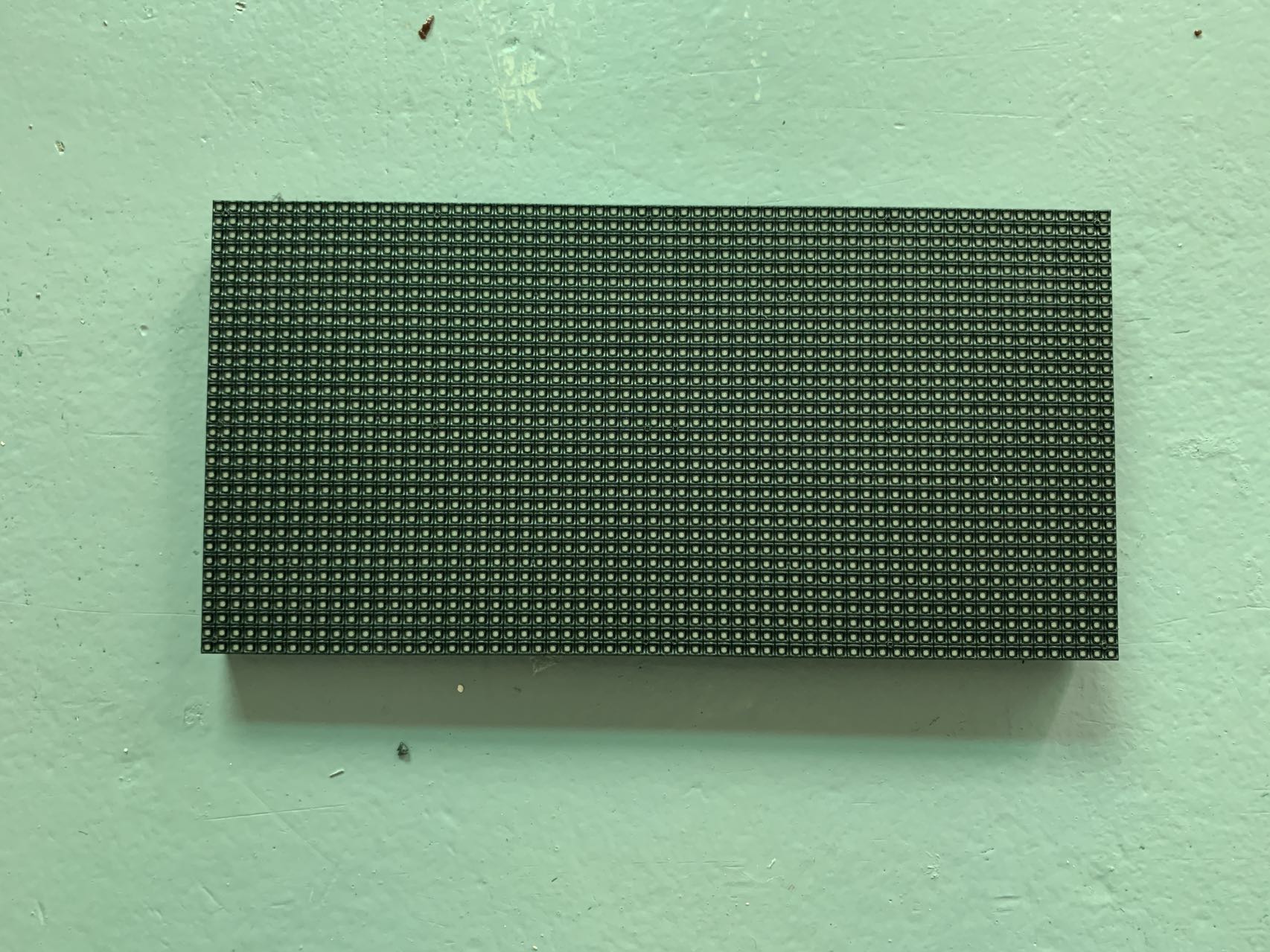

P4 Module P4 Cabinet

RGB P4 Seamless Light Weight Indoor LED Cabinet With G Energy Power SupplyRGB P4 Seamless Light Weight Indoor LED Cabinet With G Energy Power Supply

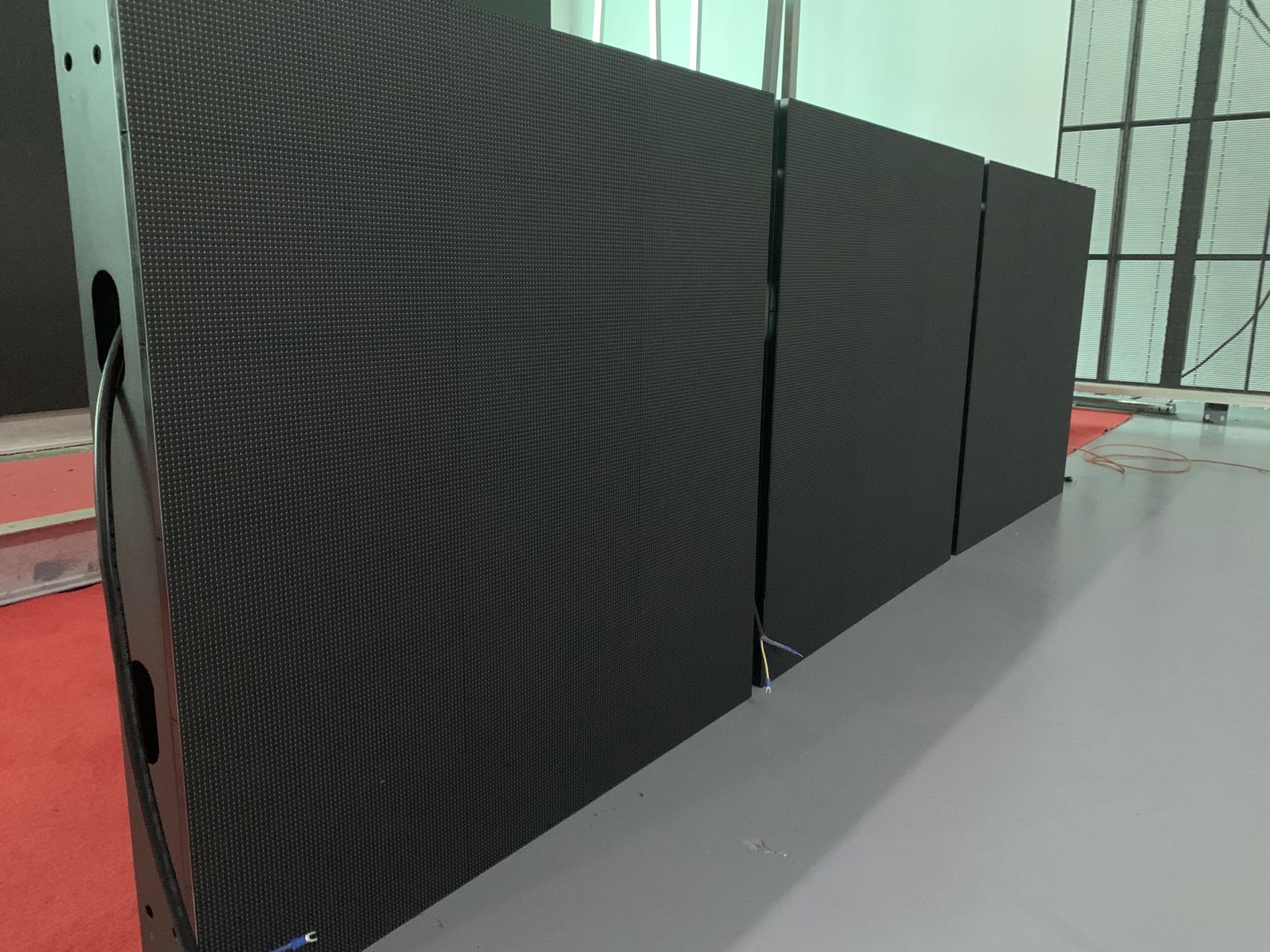

P4 cabinet size 768*768mm

RGB P4 Seamless Light Weight Indoor LED Cabinet With G Energy Power Supply

♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.

♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.

RGB P4 Seamless Light Weight Indoor LED Cabinet With G Energy Power Supply
