GOB LED Die Cast 500 X 500 Mm P3.91 Full Color Video Indoor Rental Display Price P3.91mm Wall Smd Panel Led Screen
Product Features
1, Outdoor high resolution and high brightness, smallest pixel in the world 3.91mm, unequalled image quality in outdoor environment.
2, Ingress protection being IP65, weather proof and dust proof.
3, High brightness uniformity and color uniformity(≥95%)
4, Super thin and light with die-casting aluminum cabinet design.
5, Good anti-UV and anti-oxidation performance.
6, Large viewing distance, 140° in horizontal, 140° in vertical.
7, Excellent flatness and no splicing gap between modules

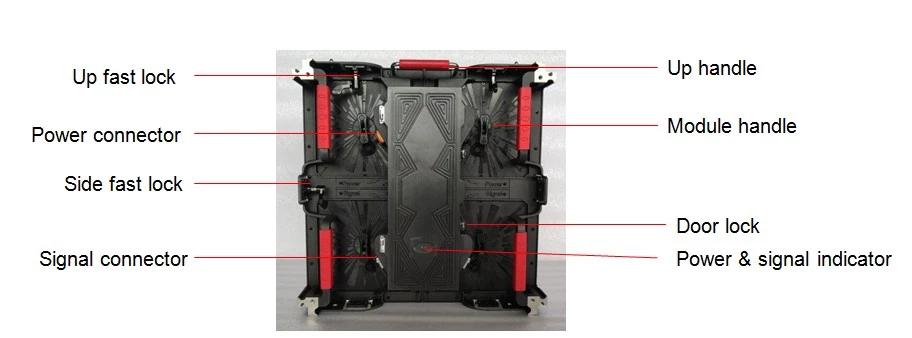

8, Quick installation and removal with facile connection lock

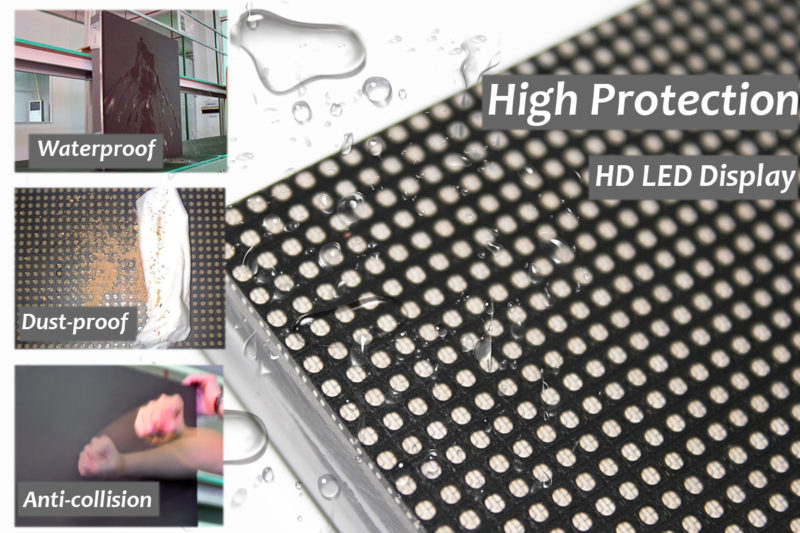

What is a GOB LED display?
GOB is Glue's high protection LED display on board, which is a new technology, similar to module packaging. It is working on the entire display module, for example 250*250mm. By covering the surface of the module's PCB board with patented transparent glue, thousands of SMD lamps have been soldered, and finally the module gets a special shield on its surface.
It uses high-protection LED display screen, with anti-collision, dust-proof, waterproof, moisture-proof, UV-proof, no harmful effects on heat dissipation and brightness loss. After a long period of rigorous testing, it has been clarified that the shielding glue even helps to dissipate heat and extend the service life.
The revolutionary change driving the entire LED display industry is that the goals of this GOB display are fine-pitch LED displays and rental screens, which have a natural need for LED diode protection.
Product specification
| SMD P3.91 |
| Lamp size | 2121 |
| Resolution/mm | 3.91 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 64510/m² |
| Module resolution | 64x64 |
| Module size/mm | 250x250 |
| View distance | ≥2m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >8000cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/8 |
| Frame rate | 60Hz |
| Refresh frequency | >4200Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ |
| Maximum power:/㎡ | <1000W |
| Average power:/㎡ | <280W |
| Self-check technology | LED spot self-check, communications check, power check,
temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
Product Overviews
| Items | Indoor Led display:
P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25 |
| Material | steel,aluminum ,die casting aluminum |
Payment
terms | 30% deposit before production, 70% balance before shipping |
| T/T |
| Western Union |
| Packing: | Standard Export Carton with fully Polyfoam or Pearl Wool |
| Flight case; |
| Anti-shaking wooden case |
| Shipping: | 5 to 7 working days upon receiving deposit payment |
| After-Sales-Service: | Lifetime with professional engineer support for free. |
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage) |
| Using Range | Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on.
|

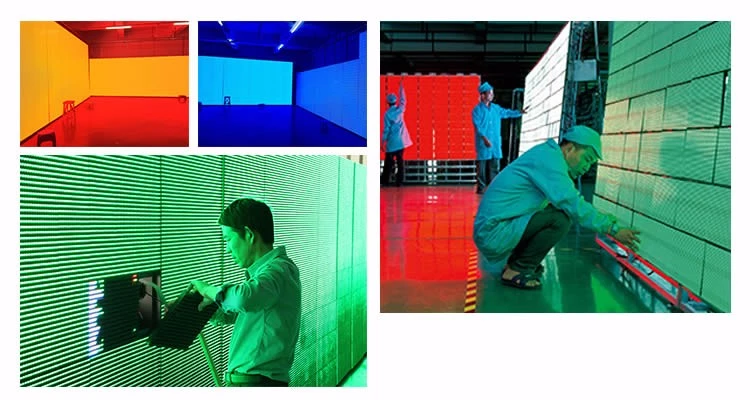

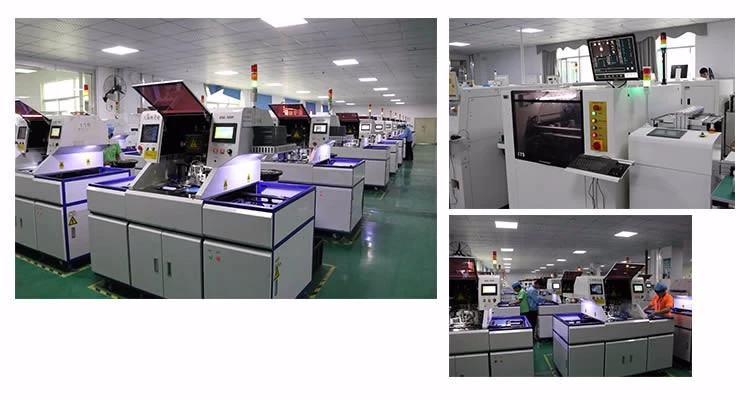

Production Pictures

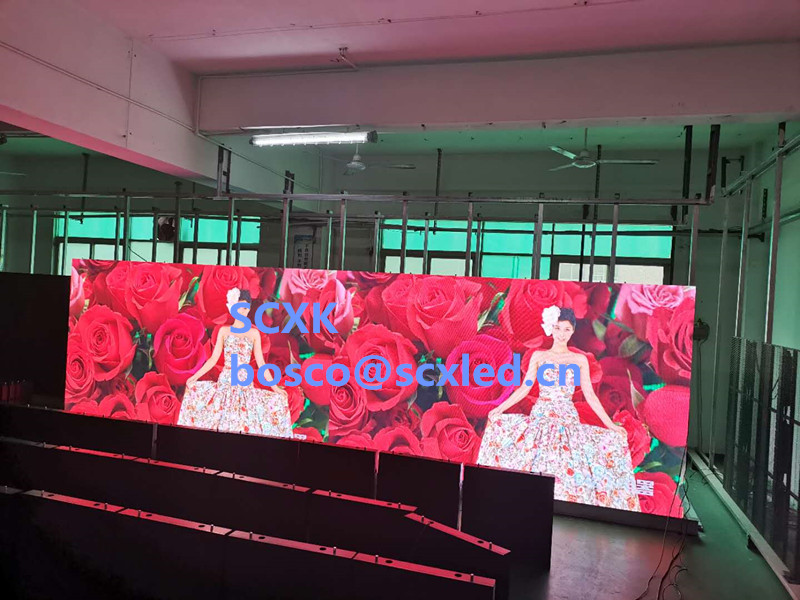

Application
Package
Company Informaiton
Shenzhen ShiChuangXinke Electronics Co.,Ltd (SCX LED) was located in Shenzhen,We are the high technology enterprise Company,and specialized in research,development,production and sales the Rental LED display screen,Fix Install LED display sreen and Poster LED etc.
SCX LED is a full color LED display, LED screen and LED should products as the main business, scientific research, development, manufacturing, and engineering for the integration of high-tech enterprises. The company is located in shenzhen baoan district shajing, has a modern research and development base, equipped with the world advanced level of scientific research, production, analysis, testing equipment, has a high-quality scientific research team, committed to the development of the industry application in the field of photoelectric photoelectric products and services. Company strictly abide by the "honesty, keep promise" of the enterprise purpose, to build the company into a cross industry step by step, cross-regional, across the international large enterprises with comprehensive operation ability.
We warmly welcome clients from all over the world to contact us for more information,and we are looking forward to establishing long-term business relationship with you.
Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
Features
1. Seamless --- precision cabinet, light weight and more durable.
2. Quality LEDs --- with wide viewing angle to ensure vivid and sharp images and video.
3. High refresh rate and high gray scale --- to ensure color consistency and better images
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Our contact
Sales Engineer Supervisor: BOSCO
Skype: 15177780539
Wechat /Whatsapp: 0086-151-7778-0539
Mob.: 0086-151-7778-053
email:Bosco@scxled.cn
