HD Indoor panel P4 SMD2121 512x512mm die casting aluminum cabinet rental full color led display screen for led video wall
256x128 module 3840Hz high refresh Kinglight black SMD2020 512x512mm panel rental p4 indoor led stage screen
Product Feature:
1. Easy to install and disassemble.
2. Indication lights to show status of power and signal status
3, The better quality/price ratio in LED Displays field.
4. Fast cooling: excellent heat dissipation performance to protect the module circuit
5. High refresh rates:With high refresh rates, our products can display flicker-free video images - including live video feed
6. High gray level and good color uniformity with brand IC, led lamp
7. Anti-interference: special anti electronic-magnetic interference function
8. High precision: seamless splicing though CNC machine
9. Seamless connection:The aluminum die-casting technology,togrther with the high precision CNC procession,
makes the precision the precision reach ±0.05mm so as to achieve seamless assembly.
10. Noiseless:The aluminum structure requires no fan.Combined with the noiseless power supply,the cabinet is totally silent.
11.Low brightness and Hight gray scale:16Bit gray scale to bring excellent performance when brightness is reduced to 20%.
♦ Product specification
| indoor SMD P4 |
| Lamp size | 2020 |
| Resolution/mm | 4 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 62500/m² |
| Module resolution | 32x32 |
| Module size/mm | 128x128 |
| View distance | ≥4m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >1800cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 120(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/16 |
| Frame rate | 60Hz |
| Refresh frequency | >1200Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ |
| Maximum power:/㎡ | <1100W |
| Average power:/㎡ | <280W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |

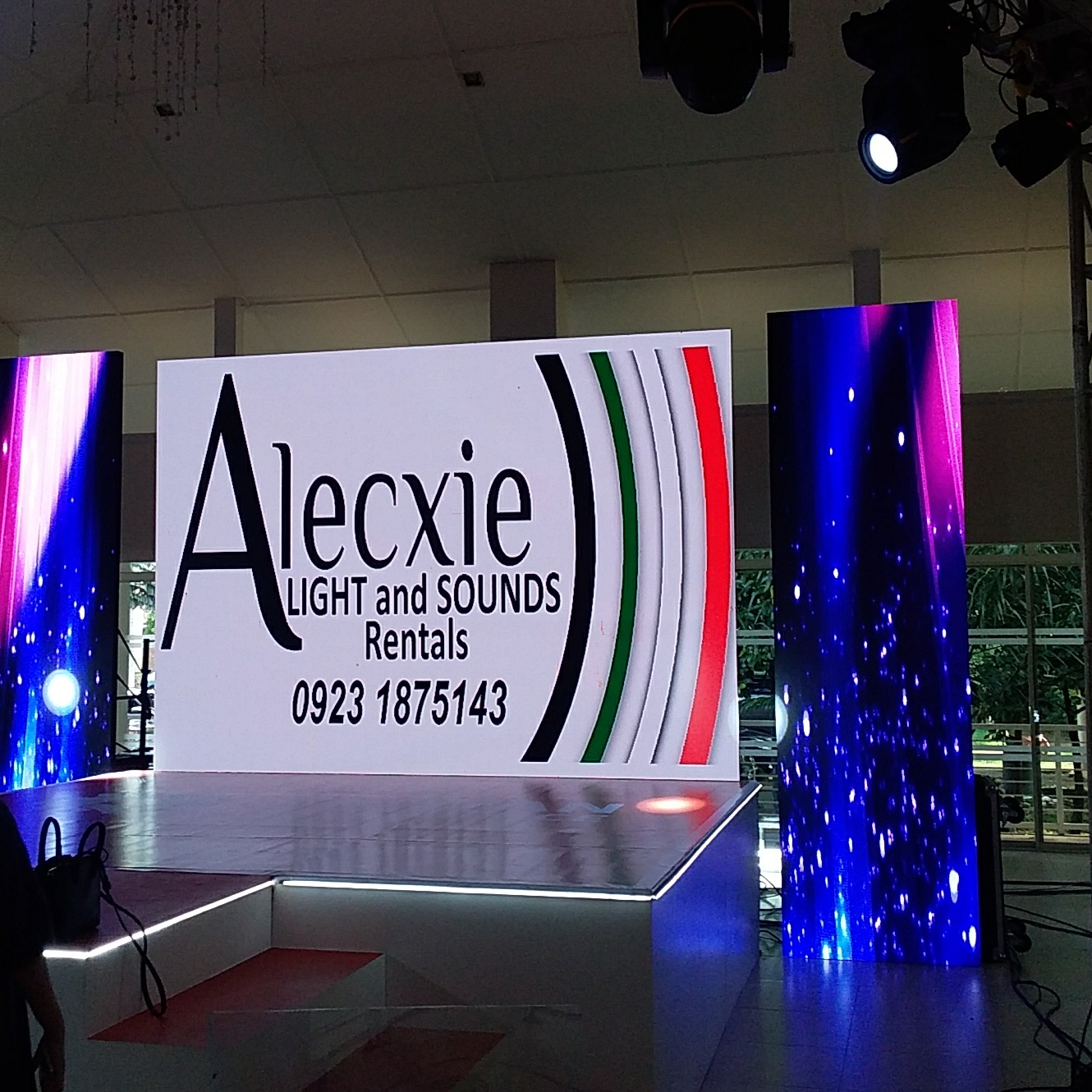

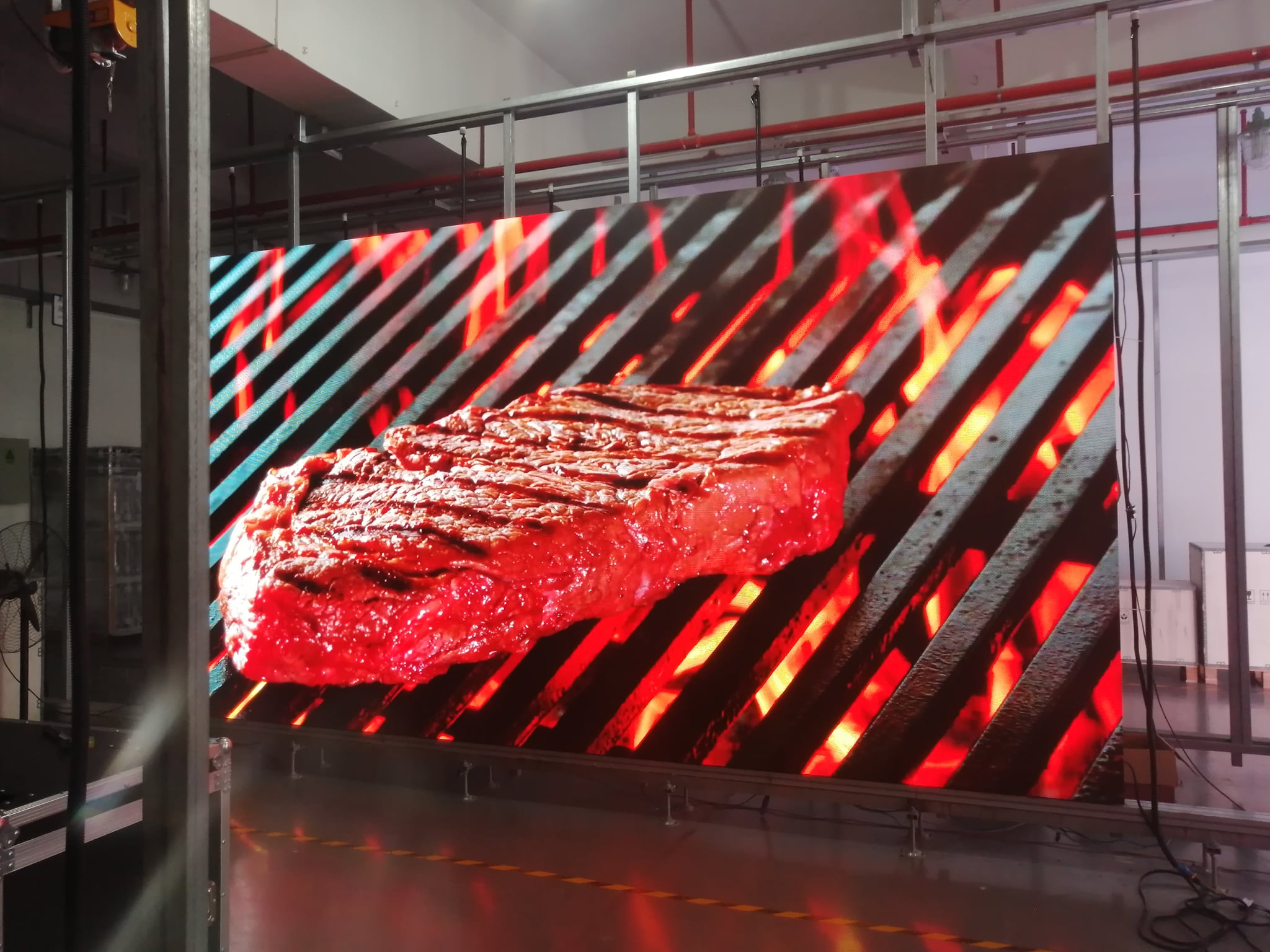

Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
♦ Frequently Asked Questions
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.
Trade Terms:
1.Payment: T/T , 35% deposits before production, 65% balance to be paid before dleiverying (Western Union or Moneygram are welcomed)
2.Production lead time for 10~50pcs: 20days, 50~100pcs:35days
3.Sample can be delivered in 3days
4.Shipping freight are quoted under your requests
5.Shipping port: Shenzhen, Mainland China
6.Discounts are offered based on order quantities
7.MOQ:1pc
Our service:
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English .
3.OEM&ODM, any your customized screen we can help you to design and put into product.
4.Distributoer ship are offered for your unique design and some our current models .
5.Protection of your sales area, ideas of design and all your private information .
