high refresh rate 400x300mm LED cabinet display,3 in1 full color
Specifications :
| outdoor DIP P1.667 |
| Resolution/mm | 1.667 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 360000/m² |
| Module resolution | 120x90 |
| Module size/mm | 200x150MM |
| View distance | 14-300m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >7500cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | 1/30 SCANNING |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
Application:
* LED display can be used in wedding photography studios, home decoration
* Indoor or outdoor signage
* Large exhibitions or promotional displays

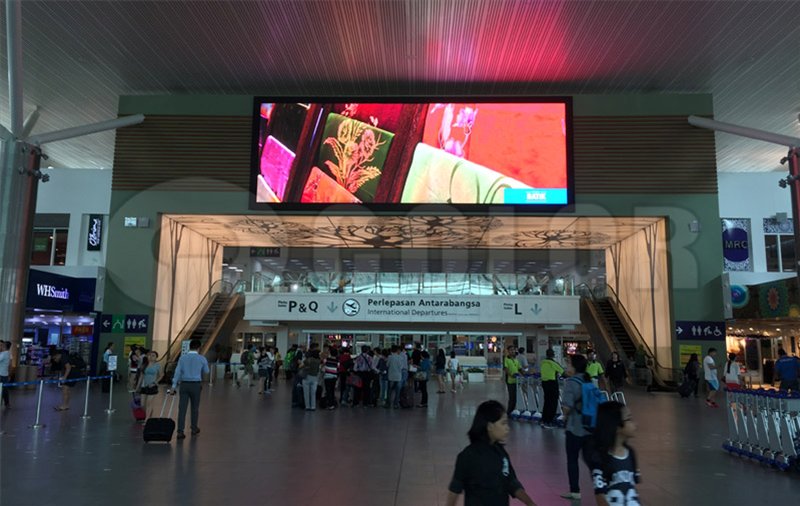

* Airport, subway, bus station and other advertisements
Packaging&Delivery:
Packing details: 1 LED display per box, we can design according to your requirements if you need.
High-strength carton, effectively prevent the LED display from being damaged during transportation.
Delivery details: 1-3 days for samples/5-8 days for small batches/10-20 days for large batches
FAQ:
1. How to place an order with us?
We are an indoor and outdoor LED display factory with more than 15 years of professional experience. If you are interested in our products, we will serve you wholeheartedly. First, you can tell us the module size, and our engineers will analyze and complete a variety of solutions for you to choose according to your needs; each solution has its advantages and disadvantages, all details (including price) are for reference only, you can choose the most suitable solution according to your own situation. After confirming the order, you need to pay a 30% deposit by wire transfer or other means, and both parties will stamp and sign the contract. After that, we will produce for you, ensure to provide high-quality products, and deliver within the specified time. Service first, trust us, trust the world.
2. What will we do if you want a better price?
Since we are a factory, the price we offer you is reasonable, and we ensure that the product quality is excellent. If you are buying the same product, you can compare the prices of other suppliers. However, if your order volume is really large, in order for you to cooperate with us for a long time, we can also consider providing it at a lower price to achieve a win-win situation. Profit is not our ultimate goal, our goal is to provide more customers with better products and services, so that more people can enjoy different experiences, more entertainment and most importantly, information. You will feel relaxed and happy when using our LED display, and we can speak freely. Communication is never a problem.
3. How can you trust the quality of our products?
In order to build a good reputation, it is not enough to just talk, we must prove ourselves with actions. Starting from the purchase of materials, every process is strictly controlled, our engineers will check the quality of the materials, even the smallest parts, they will check carefully. More importantly, they will guide the workers to produce, once a problem is found, the product will be polished rough, our employees will start again in the shortest time, they will spare no effort to test every link until all links are qualified. Because they know that details determine success or failure, especially in this era. You are welcome to visit us.
4. Can you visit our factory in China?
Normally, except for our employees, others are not allowed to visit the factory, because you know, it is not conducive to the workers to concentrate on production. But of course, our factory is open to customers, and you are warmly welcome to visit. Our person in charge will take you to visit every process in the workshop to let you know the general production situation, so that you will trust us more. Business is a long-term cooperation, and trust between each other is the most important. We believe that we can not only cooperate, but also become good friends. The future belongs to you and us.
5. What are the installation requirements of the LED display?
Power supply: The power interface must match the size of the LED display.
220V power supply: live wire, neutral wire/neutral wire and ground wire.
380V power supply: three live wires, neutral wire/neutral wire and ground wire.
The cross-sectional area of the live wire is the same as the cross-sectional area of the neutral wire.
