P1.923 SMD LED Module , 1/32 scanning Full Color LED Module 246*246mm
Delivered Product List

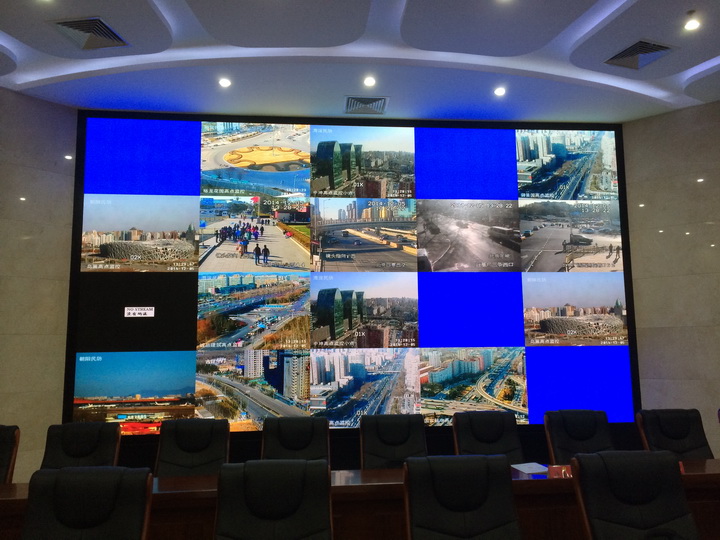

Fixed-installation indoor/outdoor LED display
Rental LED video display
LED Curtain Display/LED Bar Display
Stadium Perimeter LED Display
Vehicle-carried/Mobile LED Display
Traffic Guidance LED Display

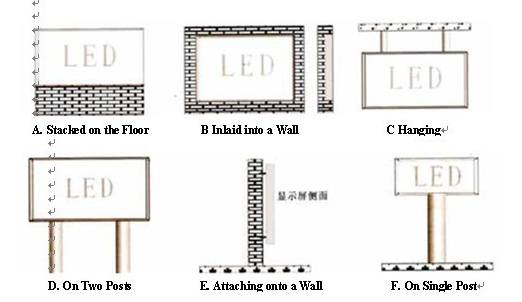

LED Display Mainframe Installation
The above six types are commonly used for LED Display installation. Types of A B C E are frequently used for indoor display installation and all the six types can be used for outdoor display installation.
Warranty
Shenzhen SCXK electronics Technology Co., Ltd. warrants only to the original buyers of its products from the company or ASWEI -authorized resellers or distributors that all its products are new, complete and never being used and that all the technical information it provides regarding its contracted products is complete, clear and correct.
Warranty coverage:
The user of ASWEI display system shall contact the company within reasonable period of time if any problem is found that can’t be solved by the users. Shenzhen SCXK is responsible for the quality of its display system that is under normal use and storage and shall repair or replace at its disposal any failed parts .The user is obligated to provide ASWEI with a written report detailing the trouble or failure.
Disclaimer of Warranty
This warranty doesn’t cover problems caused by or in following conditions:
A. The normal wear or aging of parts and the whole display system.
B. Problems or damages caused by or due to unauthorized alteration, misuse, abuse and/or negligence.
C. Problems or damages caused by or due to force majeure.
The epistar Led chip. with SMD and DIP Technology .
we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available
The wire or wireless controll system are available .( 3g and wifi controll will be welcome)
The steel consturction is very stable for led display,and you can purchase from your local market .
The detailed parameter as follows.
| 1, Item Name | P1.923 indoor SMD LED Display Module size 246*246mm 1/32 scanning |
| 2, pixel tube: | pixel pitch:1.923mm; primary colors: pure red+pure green+pure blue ,
color composing: 1R1G1B
Density:270420dots/sq m; |
| 3 , unit box | module size:246mm×246mm; Module resolution:128*128
cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm; |
| 4, whole screen: | the optimum viewing angel :horizontal 110°, vertical 50°
viewing distance:>15m;working temperature:-20°C~+45°C(-30°C ~+50°C optional) relative humidity:≤95%RH; Drive IC ET6024
|
| 5, operating voltage | AC220V±10% or 110V±10% ,average consumption:500 W/sq m
max consumption:≤650 W/ sq m |
| 6, main parameter | 1) driving mode: 1/32 scanning
2) refreshing rate:≥400Hz/s
3) frame frequency:≥60Hz/s
4) gray scale/color:≥16.7Mcolors(Synchronized)
5) manage gray:≥72bit
6) brightness:≥1500cd/sq m
7) color temperature condition:3500K~9500K,be adjustable
8) adjusting style of brightness: hand movement/auto
9) video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable.
10) average trouble-free time:≥5000hours
11) evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm
12) switch power loading:5V/40A
13) display mode of computer:1024×768 |
competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. On site installation instruction and regular inspection
6, Small order accepted.
Methods for Quality Assurance
a. Aging
1. 100% fully test
- Condition: 72 hours with 256 gray level
b. Vibration Testing
Condition: 3-5 min up and down in 5mm range
Company information
Order Procedure
Negotiation---First solution recommended---Finalize all the details---30%deposit in advance or full deposit---
Start production---Pay the balance---shipment by DHL--provide tracking number---feedback.
Parking and Shipping
A. Flight case Packing
1)150KG Per flight case
2)3 cabinets in one case
3)Flight case size: 1010mm*560mm*1175mm=39inch*22inch*46inch
B. Plywood case
1)180KG per plywood case
2)3 cabinets in one case
3)Plywood case size: 1120mm*585mm*930mm= 44inch*23inch*36inch
C.customized packing is acceptable
D. 20"FT container loading of 100sq.m
1) T/T, 30% deposit, 70% before shippment.
2) 100% Western Union in advance.
Production Flow
