High Brightness Outdoor SMD RGB P10 Full Color Led Display for Advertising

  • 1
  • 2

Brand Name : SCX

Model Number : P10

Certification : CE/ROHS/FCC/ISO/UL

Place of Origin : shenzhen

MOQ : negotiation

Price : negotiation

Payment Terms : T/T or western Union

Supply Ability : 3000sqm per month

Delivery Time : 7 working days after receive your payment

Packaging Details : flight case, wooden case, carton, it is up to you.

Module Size(W * H) : 320*160mm

Cabinet Size : 960×960mm

color temperature condition : 3500K~9500K,be adjustable

frame frequency : :≥60Hz/s

relative humidity : ≤95%RH

brightness : ≥2000cd/sq m

Display function : Video,multimedia

Life span : 100000 Hours

Working voltage : DC5V,5V

Contact Now

High Brightness Outdoor SMD RGB P10 Full Color Led Display for Advertising

Features

1, Item Name

technology parameter

2, pixel tube:

pixel pitch:16mm; primary colors: pure red+ pure green +pure blue;

color composing: 1R1G1B

Density 3906dots/sq m; DIP346

3 , unit box

module size:160mm×160mm; Module resolution:16X16

cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm;

4, whole screen:

the optimum viewing angel :horizontal 110°, vertical 50°

viewing distance:10-300m;working temperature:-20°C~+45°C(-30°C ~+50°C optional) relative humidity:≤95%RH; Drive IC ET6024

5, operating voltage

AC220V±10% or 110V±10% ,average consumption:500 W/sq m

max consumption:≤650 W/ sq m

6, main parameter

1) driving mode: static scan

2) refreshing rate:≥400Hz/s

3) frame frequency:≥60Hz/s

4) gray scale/color:≥16.7Mcolors(Synchronized)

5) manage gray:≥72bit

6) brightness:≥2000cd/sq m

7) color temperature condition:3500K~9500K,be adjustable

8) adjusting style of brightness: hand movement/auto

9) video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable.

10) average trouble-free time:≥5000hours

11) evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm

12) switch power loading:5V/40A

13) display mode of computer:1024×768

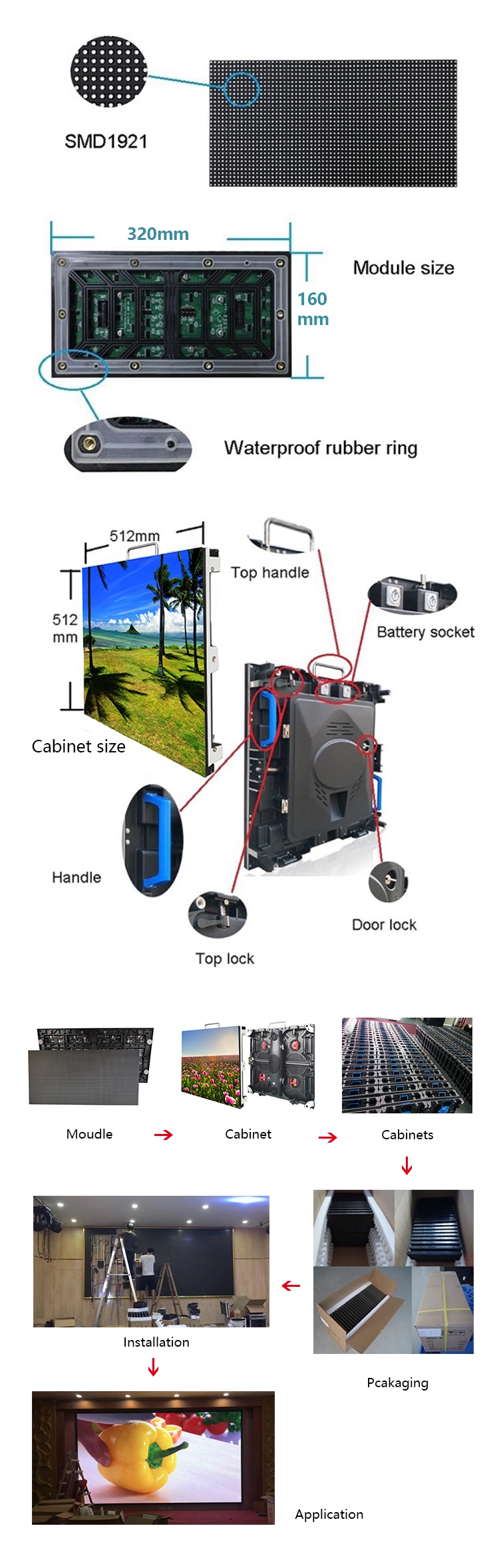

Process

High Brightness Outdoor SMD RGB P10 Full Color Led Display for Advertising

Factory Equipment

1 Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
2 Automatic Glue- pouring Machine, Solder Paste Printing Machine,
3 Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
4 Withstand Voltage Tester, Ground Resistance Tester,
5 Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
6 Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.

Competitive Advantage

1. 2 years’ warranty with free repair service

2. 24/7 Hours online Remote Support

3. Solution and PCB design

4. Free factory training

5. On site installation instruction and regular inspection

6, Small order accepted.

Contact : Seori Zhou

Mob:+86-19386814677(Whatsapp/Wechat)

Email:ruby@scxled.cn
